In Stock
Only 3 left
IMS Rear Prop Shaft - Rear Section - KDN165
Fits from the centre bearing down to the rear differential - UK manufactured See more detail
Choose your vehicle to ensure compatibility | Choose Vehicle |
£418.80 £349.00
Add to Wishlist
Product Code:
PROP007
Order by 15:00 mon-fri for same day dispatch.
28 Day returns or exchange.
1 Year Parts Warranty

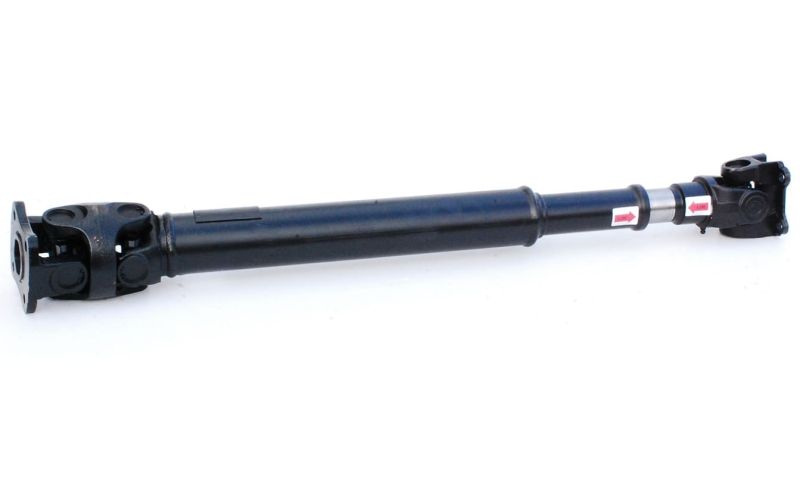

Now proudly supplying a 100% new UK Manufactured rear prop shaft as per original design with double cardan joint (wide angle joint) setup, for Hilux KDN165 Mk5 with Independent front suspension (IFS).
IMS manufactured prop shafts are professionally balanced individually and proven with a technical balance certificate enclosed with each prop shaft.
The rear prop on the Mk5 is split into 2 parts, this section is the rear part of the rear prop shaft from the Centre Bearing carrier to the rear differential.
The prop has a sliding splined joint which fits at the rear axle, whilst the double "Cardan Joint" (wide angle double joint) fits to the centre bearing end.
About the shaft:
- Manufactured in the UK to the original design specification.
- Features a high quality "Double Cardan Joint" (wide angled double joint) the cause of most front prop failures.
- Matsui UJ's with thick internal circlips.
- CNC Computer generated machining processes for flanges and uprated splines for increased shaft life-span
- The latest PBM7 Balancing machine is used on every shaft - after which each shaft is individually marked for alignment.
- BSI registered and approved to Quality Management System ISO 9001:2008
- IMS are accredited suppliers to GKN, Dana Spicer, Voith UK and many GKN operations in Scandinavia and European countries - these names speak volumes.
- So yes, more expensive than cheaper unbranded Imported shafts but the quality of this shaft is plain to see in the components used which is why RoughTrax has now chosen IMS to be our UK manufacturer for this shaft.
Please note:
Always grease shaft prior to fitment - a shaft should be greased every month if working in harsh conditions. Don't forget - there are 5 grease nipples on the shaft!
Common issues:
Quite often the Cardan Joint or wide angle joint as is often known fails, this is the joint that has two UJ's very close together to form one joint, in between these two UJ's is an internal "ball and socket" type joint which is generally what fails and causes severe vibration and harsh knocking noises.
Generally speaking, once this Cardan joint fails then the prop is scrapped, only specialist repair companies can replace this and is usually more expensive than this complete Genuine Toyota shaft.
Maintenance / Fitting:
Our new shaft should be fitted with the splined sliding end at the rear axle as Toyota originally designed.
UJ's should be greased with a Lithium Base NLGI No.2 grease our part WC010, its been recommended that shafts be greased once a month or every 1000 miles in harsh conditions.
| Weight | 20.000000 |
|---|---|
| Manufacturer | IMS Prop Shafts |
| MPN (Manufacturer Part Number) | 37110-3D530 |
| Vehicle | Toyota Hilux Pickup KDN165R 2.5cc (2KDFTV) Turbo Diesel (D4D) RHD (51 - 55 reg, 8/2001-7/2005) UK Mk5 |
| Warranty Options | 1 Year Parts Warranty |
| Fitting Position | From the centre bearing to the rear diff. |
| Unit of Sale | Individually - From the centre bearing down to the rear differential |
Vehicle Compatibility
Below are a list of compatible vehicle for this product.
SERVICE KITS for your Toyota
You have not selected a Toyota model to filter these products yet.
Choose your vehicle to ensure compatibility
Change VehicleDelivery Information - Cut-off Time 15:00 Monday-Friday
> Click here for our Opening Hours and Delivery Times
Free Delivery - Orders Over £90 (Online Orders Only / 2-5 day service) subject to Terms & Conditions*
At checkout enter your delivery Postcode - the available options and charges will be provided depending on the product and location prior to any purchase.
*Excludes Islands and some Scottish postcodes where surcharges apply, click here for exclusions. Free delivery is not valid on any telephone order.
PLEASE NOTE: Orders placed before 15:00 weekdays will be dispatched on the same day subject to stock and points below. Orders placed after 15:00 on Friday or over the weekend will be dispatched on the following Monday.
If you wish to make any additions or alternations to your initial order you will need to let us know before 12.00 noon.
We are closed over Bank Holidays.
For full details please visit to our Deliveries page.
International Delivery – Cut-off 12 Noon Monday-Friday
RoughTrax offers fast, reliable, and affordable service as standard, we make sending your international order easy with an online tracking system sent straight to your email once despatched.
To confirm a delivery price simply add products to your basket, select your country and enter your postcode in the delivery field. The website will automatically calculate your delivery price. Goods can be sent worldwide.
All International orders are sent with FedEx, Parcelforce or DHL depending on the product/s & service you have selected.
For full details please visit our International Deliveries page.
Arrange Own Courier
If a delivery method is not available, an option of “Arrange My Own Courier” will display. This enables you to order through the website and arrange your own courier for your goods to be collected directly from RoughTrax in Bristol, UK.
For full details please visit to our Arrange My Own Courier page.
Returns
At RoughTrax we know that sometimes you will need to return items.
- All products must be re-sellable and returned along with the original packaging and documents. (Stock to order or Special order items are non-returnable).
- Goods must be returned within 28 days of purchase as per our Terms and Conditions
- Products must be returned to RoughTrax at RoughTrax Ltd, Units 4-7 Pixash Business Centre, Pixash Lane, Keynsham, Bristol. BS31 1TP United Kingdom
If Returned parts that qualified for Free Delivery.
If you return a product(s) that qualified you for Free Delivery and the remainder of your order does not exceed the £90 Free Delivery Promotion, then RoughTrax reserve the right to charge carriage for the remaining products purchased to cover the carriage cost.
Please visit our Returns page to download a returns form and for further information.
Write Your Own Review
Questions & Answers for IMS Rear Prop Shaft - Rear Section - KDN165
Is the new shaft balanced?
Yes, you will notice balance plates spot welded to the shaft, the new shaft is balanced and the splines aligned.
Do I need to balance the front section of the shaft to the new rear section?
Ideally yes, Driveline specialists would always recommend removing the front section from gearbox to centre bearing and balancing the entire rear shaft as one unit to avoid any potential vibration. When Toyota fitted a new shaft the complete rear shaft from gearbox down to diff would have been balanced as one long prop-shaft.
Anything to look out for?
Our new rear shaft is fitted with the splined end at the centre bearing not down at the diff end.
Don't forget, when offering up to the front section shaft with the centre bearing all fixed yokes should be in-line.
Keep all prop-shafts regularly greased especially if working in harsh conditions.
