RBI Rear Prop Shaft Centre Bearing
Choose your vehicle to ensure compatibility | Choose Vehicle |
Add to Wishlist
![Order before 15:00 GMT weekdays for same day dispatch.](/pub/static/frontend/plan2pixel/roughtrax-desktop/en_GB/images/product-trust-trax.jpg)
Order by 15:00 mon-fri for same day dispatch.
![28 Day returns or exchange.](/pub/static/frontend/plan2pixel/roughtrax-desktop/en_GB/images/product-trust-trax.jpg)
28 Day returns or exchange.
![1 Year Parts Warranty](/pub/static/frontend/plan2pixel/roughtrax-desktop/en_GB/images/product-trust-trax.jpg)
1 Year Parts Warranty

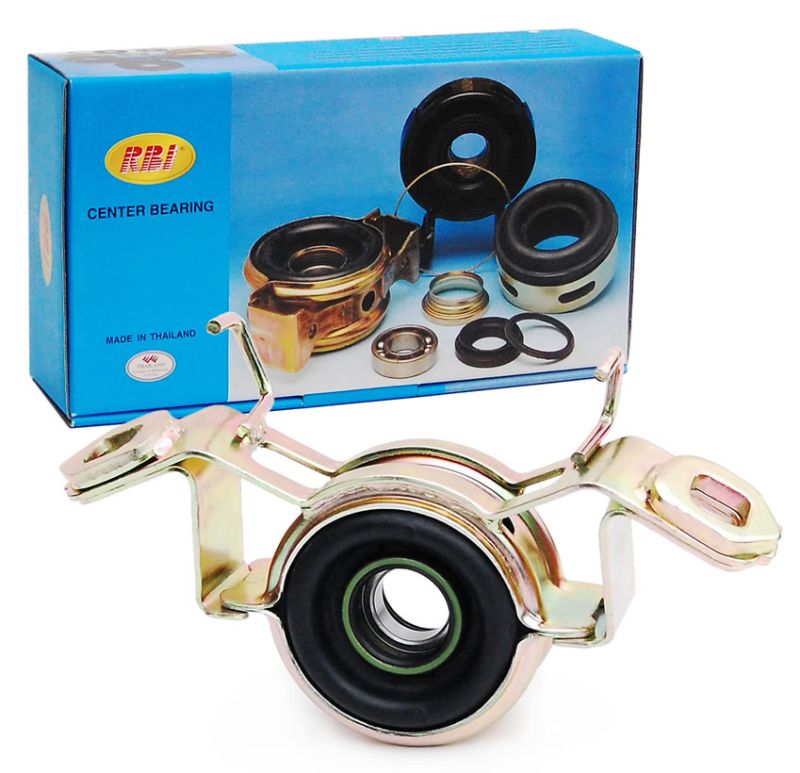

Rear prop shaft centre bearing carrier for the Hilux Pickup 1984-1997 fitted to the front section of the rear prop shaft, manufactured by RBI and features a Koyo bearing race in the centre.
- This centre bearing has an outer steel cage as per images
- In the centre lies an integrated inner roller bearing race supported by a super strong rubber mount which provides the flex to the mounting, either side of the bearing are two Nitrile seals preventing contaminants from entering.
- Its the quality of these components that sets this make of bearing aside.
Assembly:
- The centre bearing supports the prop shaft when a 2 piece shaft is fitted, the cage is mounted to the chassis via the two retaining bolts, care should be taken to keep the prop shaft aligned during assembly.
- The whole Centre Bearing Mount is fitted to the front section of the rear prop shaft and retained by the flange and central nut. Once removed the complete prop shaft centre bearing mounting with cage simply slides off the prop shaft, look out for the centre-bearing shim that should be fitted (See Questions tab for more info).
- Always mark the splined flange position in relation to the main shaft so that it fits back in the same position else the UJ alignment will be out, also ensure the bearing is fitted the correct way up to help reduce the overall angle of the shaft alignment.
Prop shaft centre bearings fail over time, the bearing itself can become noisy or the rubber bushing can become soft, perished or even split causing vibration or even knocking noises. Look out for any oil spraying onto the mount as this will certainly soften and reduce the life of a bearing mount.
Weight | 1.445000 |
---|---|
Manufacturer | RBI |
MPN (Manufacturer Part Number) | T294X20 |
OE Equivalent Part Number | 37230-35080, 37230-35100, 37230-35061, 37230-35060 |
Warranty Options | 1 Year Parts Warranty |
Date Codes | 1984-1997 |
Fitting Position | Front of the rear prop shaft. |
Unit of Sale | Individually |
Vehicle Compatibility
Below are a list of compatible vehicle for this product.
- Toyota Hilux Pickup LN65R 2.4cc (2L) Diesel RHD (A - F reg, 8/1983-7/1988) UK Mk2
- Toyota Hilux Pickup YN65R 2.0cc (3Y) Petrol RHD (A - D reg, 8/1983-8/1985) UK Mk2
- Toyota Hilux Pickup YN67R 2.2cc (4Y) Petrol RHD (C - L reg, 8/1985-7/1988) UK Mk2
- Toyota Hilux Pickup LN105R 2.4cc (2L) Diesel RHD (F - R reg, 8/1988-7/1997) UK Mk3
- Toyota Hilux Pickup YN106R 2.2cc (4Y) Petrol RHD (F - R reg, 8/1988-8/1997) UK Mk3
- Toyota Hilux Pickup LN106 2.8cc (3L) Diesel RHD (F - R reg, 8/1988-8/1997) Import
- Toyota Hilux Pickup LN107 2.8cc (3L) Diesel RHD (J - R reg, 8/1991-8/1997) Import
- Toyota Hilux Pickup LN109 2.8cc (3L) Diesel RHD (F - R reg, 8/1994-8/1997) Import
- Toyota Hilux Pickup LN110L 2.4cc (2L) Diesel LHD (F - R reg, 1988-1997) Import Mk3
SERVICE KITS for your Toyota
You have not selected a Toyota model to filter these products yet.
Delivery Information - Cut-off Time 15:00 Monday-Friday
> Click here for our Opening Hours and Delivery Times
Free Delivery - Orders Over £90 (Online Orders Only / 2-5 day service) subject to Terms & Conditions*
At checkout enter your delivery Postcode - the available options and charges will be provided depending on the product and location prior to any purchase.
*Excludes Islands and some Scottish postcodes where surcharges apply, click here for exclusions. Free delivery is not valid on any telephone order.
PLEASE NOTE: Orders placed before 15:00 weekdays will be dispatched on the same day subject to stock and points below. Orders placed after 15:00 on Friday or over the weekend will be dispatched on the following Monday.
If you wish to make any additions or alternations to your initial order you will need to let us know before 12.00 noon.
We are closed over Bank Holidays.
For full details please visit to our Deliveries page.
International Delivery – Cut-off 12 Noon Monday-Friday
RoughTrax offers fast, reliable, and affordable service as standard, we make sending your international order easy with an online tracking system sent straight to your email once despatched.
To confirm a delivery price simply add products to your basket, select your country and enter your postcode in the delivery field. The website will automatically calculate your delivery price. Goods can be sent worldwide.
All International orders are sent with FedEx, Parcelforce or DHL depending on the product/s & service you have selected.
For full details please visit our International Deliveries page.
Arrange Own Courier
If a delivery method is not available, an option of “Arrange My Own Courier” will display. This enables you to order through the website and arrange your own courier for your goods to be collected directly from RoughTrax in Bristol, UK.
For full details please visit to our Arrange My Own Courier page.
Returns
At RoughTrax we know that sometimes you will need to return items.
- All products must be re-sellable and returned along with the original packaging and documents. (Stock to order or Special order items are non-returnable).
- Goods must be returned within 28 days of purchase as per our Terms and Conditions
- Products must be returned to RoughTrax at RoughTrax Ltd, Units 4-7 Pixash Business Centre, Pixash Lane, Keynsham, Bristol. BS31 1TP United Kingdom
If Returned parts that qualified for Free Delivery.
If you return a product(s) that qualified you for Free Delivery and the remainder of your order does not exceed the £90 Free Delivery Promotion, then RoughTrax reserve the right to charge carriage for the remaining products purchased to cover the carriage cost.
Please visit our Returns page to download a returns form and for further information.
Product Reviews for RBI Rear Prop Shaft Centre Bearing
Questions & Answers for RBI Rear Prop Shaft Centre Bearing
Do I need any special equipment to fit?
No, once the prop is removed by simply undoing the central flange nut, you can slide the flange off the shaft, the complete centre bearing then also slides off the prop shaft.
Do I need to mark the flange?
Yes, the flange is splined to the main shaft, make a mark prior to removing aligning both flange and main shaft so that it goes back on in the same position.
Is a shim fitted between the flange and centre bearing?
Not always but in the main, yes. When the shaft is manufactured there has to be tolerance between the flange and the centre bearing rubber else the flange will wear into the rubber causing failure.
At no time should any part of the flange or any revolving part contact the rubber else it will simply burn through.
Toyota therefore, added a small thin shim, depending on clearance, it is fitted between the flange and the centre bearing just spacing it away slightly and giving clearance.
Our advice is to check carefully when removing as sometimes the shim can stick to the old bearing face or the flange and you may not even know its there.
Will the prop shaft centre bearing fit any way around?
No, the cage of the centre bearing is designed to angle the bearing support more towards the rear differential reducing the prop shaft alignment angle, ensure you fit it the correct way around.
Is there movement after fitting?
Yes, the very nature of the mount is a rubber support, therefore you will always have some movement within the rubber mounting.
