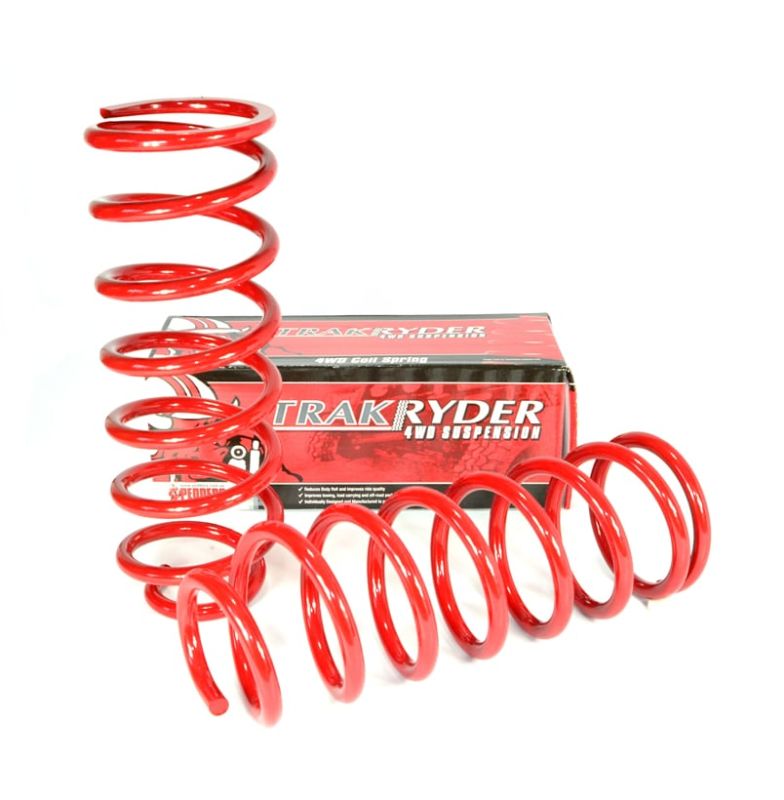

Pedders 40mm Lift Uprated Rear Coil Springs

Sold as a pair, Lift your truck with Pedder's quality and performance See more detail

Choose your vehicle to ensure compatibility

Choose Vehicle

Rating:

100% of 100

4 Reviews Add Your Review

£158.40 £132.00

Add to Wishlist

Product Code:

COIL007

Order before 15:00 GMT weekdays for same day dispatch.

Order by 15:00 mon-fri for same day dispatch.

28 Day returns or exchange.

1 Year Parts Warranty

Details

A Pair of 40mm Lift Rear Uprated Coil Springs for the Hilux Surf 185 Models & Land Cruiser 90 Series, now finished in Red Epoxy coating and Manufactured by renowned suppliers Pedders from Australia.

These new coils offer those customers that wish to lift their vehicle over the original ride height by approx. 40mm. With an increase in wire diameter up to 15mm, these rear coils have a spring rate of 194 lb/In, allows for larger tyres or an increase in handling performance.

About the coils:

The coils are sold as a pair
Pedders Rear coils are not handed and have been redesigned for these specific models.
You may notice a difference in overall length when you remove your old coils, however, with the increase in wire diameter, materials and design, once fitted the coils do not compress as much as the original Toyota rear coil and so, in turn, provides more stability without jacking the truck up to high.
Pedders Cois meet QS9001 standards
Every coil is shot peened to relieve stress in the material and increasing the lifespan and durability
Pedders also carry out "Scragging" a process of over compressing each coil with effectively pre-sets the spring determining it's ride height
Each and every coil is Load tested rather than batch tested.
Finally, the coils are powder coated in Pedders unique red for a durable protective finish.

Great quality rear coils from a recognized Australian brand that won't lift too high but firm up the ride, sold as a pair.

40mm rear coil springs help to prevent body roll and also perform under load when towing or carrying heavy loads. Extended rear shocks are usually required with these coils.

SPECS / Fitments

More Information
Weight	8.230000
Manufacturer	Pedders
MPN (Manufacturer Part Number)	7469
Warranty Options	1 Year Parts Warranty
Fitting Position	Rear
Unit of Sale	Two coils, left & right.
Specs & Fitment	Spring Rate - 194 Lbs/in Free Length - 425mm Wire Ø - 15mm Coil # - 8

Compatible Vehicles

Vehicle Compatibility

Below are a list of compatible vehicle for this product.
