In Stock

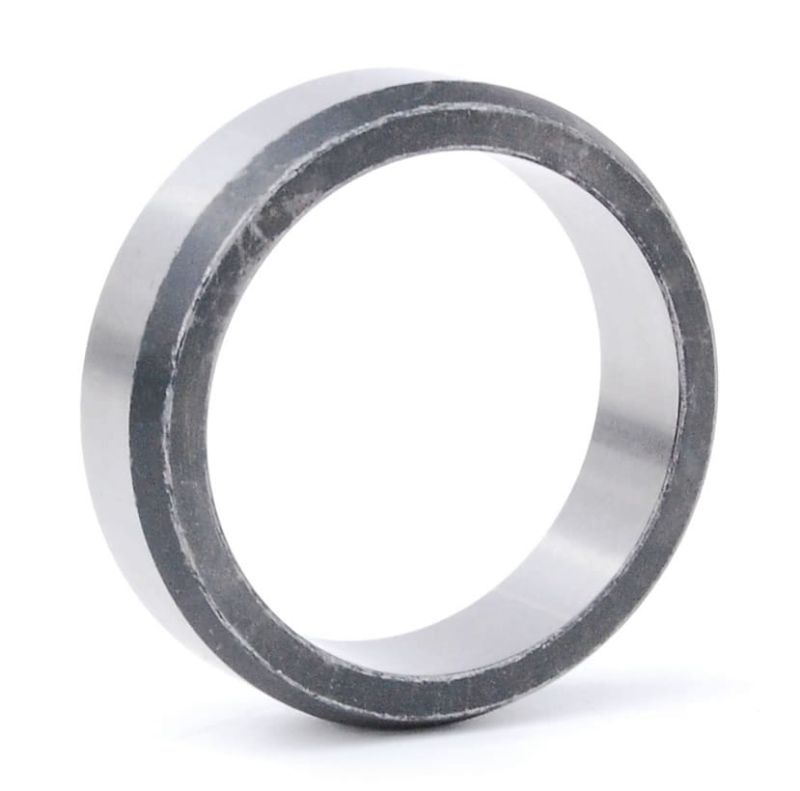

Genuine Toyota Rear Half Shaft Retainer Collar - 50mm Outer Ø
New Genuine Toyota collar, press fit onto the half shaft, highly machined & case hardened. See more detail
Choose your vehicle to ensure compatibility | Choose Vehicle |
£15.59 £12.99
Add to Wishlist
Product Code:
RAMS001
Order by 15:00 mon-fri for same day dispatch.
28 Day returns or exchange.
1 Year Parts Warranty
A New Genuine Toyota Rear half shaft retaining collar manufactured specifically for Hilux Pickups, Surf & Land Cruisers models listed, on Hilux pickups KUN25 & KUN26 please see date codes below.
This half shaft retainer collar is fitted on the half shaft between the snap ring and rear wheel bearing for models without ABS and one either side of the ABS ring for models with ABS.
Always check the position of the collar on the shaft, the Inner axle seal must run on the flat face of the collar.
We only sell the high-grade collar as per the original fitment specification, the retainer collar has been highly machined and case hardened as it is intended to be pressed onto the half-shaft.
Always check prior to ensure the ring is fitted in the correct position.
The chamfer on the leading edge of the collar is always facing the inner axle seal.
Outer Ø50mm x Inner Ø39.92mm x W-13mm
Hilux KUN25 & KUN26 please note:
Compatible with chassis numbers starting;
MRO upto August 2008 oand
AHT upto October 2008
| Weight | 0.070000 |
|---|---|
| Dimensions | Outer Ø50mm x Inner Ø39.92mm x W-13mm |
| Manufacturer | Toyota |
| MPN (Manufacturer Part Number) | 42423-20010 |
| Warranty Options | 1 Year Parts Warranty |
| Date Codes | Please see description |
| Fitting Position | Rear Half Shaft |
| Unit of Sale | Individually (x1) |
| Specs & Fitment | Outer Diameter: 50mm |
Vehicle Compatibility
Below are a list of compatible vehicle for this product.
- Toyota Hilux Pickup LN65R 2.4cc (2L) Diesel RHD (A - F reg, 8/1983-7/1988) UK Mk2
- Toyota Hilux Pickup YN65R 2.0cc (3Y) Petrol RHD (A - D reg, 8/1983-8/1985) UK Mk2
- Toyota Hilux Pickup YN67R 2.2cc (4Y) Petrol RHD (C - L reg, 8/1985-7/1988) UK Mk2
- Toyota Hilux Pickup LN105R 2.4cc (2L) Diesel RHD (F - R reg, 8/1988-7/1997) UK Mk3
- Toyota Hilux Pickup YN106R 2.2cc (4Y) Petrol RHD (F - R reg, 8/1988-8/1997) UK Mk3
- Toyota Hilux Pickup LN106 2.8cc (3L) Diesel RHD (F - R reg, 8/1988-8/1997) Import
- Toyota Hilux Pickup LN107 2.8cc (3L) Diesel RHD (J - R reg, 8/1991-8/1997) Import
- Toyota Hilux Pickup LN109 2.8cc (3L) Diesel RHD (F - R reg, 8/1994-8/1997) Import
- Toyota Hilux Pickup LN110L 2.4cc (2L) Diesel LHD (F - R reg, 1988-1997) Import Mk3
- Toyota Hilux Pickup LN165R 2.4cc (2LT) Turbo Diesel RHD (R - Y reg, 8/1997-7/2001) UK Mk4
- Toyota Hilux Pickup LN166R 2.8cc (3L) Diesel RHD (R - 06 reg, 8/1997-2006) Import
- Toyota Hilux Pickup LN167 3.0cc (5L) Diesel RHD (R - 05 reg, 8/1997-7/2001) Import
- Toyota Hilux Pickup LN172 3.0cc (5L) Diesel RHD (R - 05 reg, 8/1997-7/2004) Import
- Toyota Hilux Pickup KZN165 3.0cc (1KZTE) Turbo Diesel RHD (V - 54 reg, 9/1999-2005) Import
- Toyota Hilux Pickup KDN165R 2.5cc (2KDFTV) Turbo Diesel (D4D) RHD (51 - 55 reg, 8/2001-7/2005) UK Mk5
- Toyota Hilux Pickup KUN25R 2.5cc (2KDFTV) Turbo Diesel (D4D) RHD (55 - 61 reg, 7/2005-8/2011) Mk6
- Toyota Hilux Pickup KUN26R 3.0cc (1KDFTV) Turbo Diesel (D4D) RHD (56 - 61 reg, 10/2006-8/2011) Mk6
- Toyota Hilux Surf LN130 2.4cc (2LT) Turbo Diesel RHD/LHD (F - L reg, 1988-8/1993) Import
- Toyota Hilux Surf KZN130 3.0cc (1KZTE) Turbo Diesel RHD (L - N reg, 8/1993-11/1995) Import
- Toyota Hilux Surf VZN130 3.0cc (3VZE) V6 Petrol RHD (H - N reg, 8/1993-11/1995) UK/Import
- Toyota Hilux Surf KZN185 3.0cc (1KZTE) Turbo Diesel RHD (N - W reg, 11/1995-8/2000) Import
- Toyota Hilux Surf RZN185 2.7cc (3RZFE) Petrol RHD (N - 52 reg, 11/1995-11/2002) Import
- Toyota Hilux Surf VZN185 3.4cc (5VZFE) V6 Petrol RHD (N - 52 reg, 11/1995-11/2002) Import
- Toyota Hilux Surf 4Runner KZN130 3.0cc (1KZT) Turbo Diesel RHD (L - N reg, 8/1993-11/1995) UK
- Toyota Land Cruiser LJ70R 2.4cc (2LT) Turbo Diesel RHD (D - G reg, 1986-1/1990) UK
- Toyota Land Cruiser LJ70R 2.4cc (2LT) Turbo Diesel RHD (G - K reg, 1/1990-5/1993) UK
- Toyota Land Cruiser LJ71 2.4cc (2LT) Turbo Diesel RHD (C - G reg, 1986-1/1990) Import
- Toyota Land Cruiser LJ71 2.4cc (2LTE) Turbo Diesel RHD (G - K reg, 1/1990-5/1993) Import
- Toyota Land Cruiser LJ78 2.4cc (2LTE) Turbo Diesel RHD (G - K reg, 4/1990-5/1993) Import
- Toyota Land Cruiser KZJ70R 3.0cc (1KZT) Turbo Diesel RHD (K - N reg, 5/1993-4/1996) UK
