In Stock

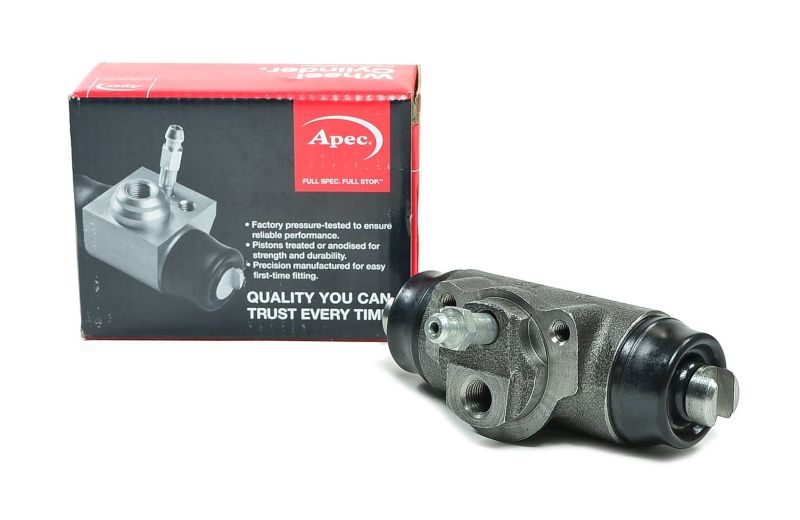

Apec Rear Wheel Brake Cylinder
Bolts to the rear backing plate inside the brake drum - quality branded component See more detail
Choose your vehicle to ensure compatibility | Choose Vehicle |
£17.40 £14.50
Add to Wishlist
Product Code:
BWC002
Order by 15:00 mon-fri for same day dispatch.
28 Day returns or exchange.
1 Year Parts Warranty
A new rear wheel brake cylinder complete with a new bleed nipple for the Hilux Pickups & Hilux Surfs listed with the original bore size of 22.2mm and manufactured by leading brand Apec.
Listed specifically for the intended model and not a universal fit wheel cylinder that may look similar.
Both the Left Hand & Right Hand rear wheel brake cylinders are the same and are sold individually, bore size 22.2mm.
- This cast wheel cylinder bolts through the backing plate via the two original bolts.
- It comes with a new bleed nipple fitted as per the images and the brake shoes locate at either end of the cylinder.
- Internal bore size 22.2mm
- The drum needs to be removed in order to fit,
- Both the Left-Hand & Right-Hand rear wheel brake cylinders are the same
- Sold individually.
The metal brake fluid brake pipe fits into the new wheel cylinder once fitted and then the system bled via the bleed nipple. When the brake pedal is depressed the two pistons are forced out via hydraulic fluid pressure and so applying the brake shoes against the brake drum wall.
A good way to check your old wheel cylinders condition is to peel back the rubber protective boots either side of the wheel cylinder, if any signs of fluid are apparent the replace the cylinders.
Apec is one of the most recognised manufacturers of many braking components, quality part, quality fit with a brand you can trust.
| Weight | 0.670000 |
|---|---|
| Manufacturer | Apec Braking |
| MPN (Manufacturer Part Number) | BCY1207 |
| OE Equivalent Part Number | 47550-35190, 47550-35170 |
| Warranty Options | 1 Year Parts Warranty |
| Date Codes | 1989-2005 |
| Fitting Position | Fits inside the left hand or right hand rear brake drum bolted to the backing plate. |
| Unit of Sale | Individually (x1) |
| Specs & Fitment | Bore Size Ø: 22.2 mm Mounting Bores Distance: 40 mm |
Vehicle Compatibility
Below are a list of compatible vehicle for this product.
- Toyota Hilux Pickup LN105R 2.4cc (2L) Diesel RHD (F - R reg, 8/1988-7/1997) UK Mk3
- Toyota Hilux Pickup YN106R 2.2cc (4Y) Petrol RHD (F - R reg, 8/1988-8/1997) UK Mk3
- Toyota Hilux Pickup LN106 2.8cc (3L) Diesel RHD (F - R reg, 8/1988-8/1997) Import
- Toyota Hilux Pickup LN107 2.8cc (3L) Diesel RHD (J - R reg, 8/1991-8/1997) Import
- Toyota Hilux Pickup LN109 2.8cc (3L) Diesel RHD (F - R reg, 8/1994-8/1997) Import
- Toyota Hilux Pickup LN110L 2.4cc (2L) Diesel LHD (F - R reg, 1988-1997) Import Mk3
- Toyota Hilux Pickup LN165R 2.4cc (2LT) Turbo Diesel RHD (R - Y reg, 8/1997-7/2001) UK Mk4
- Toyota Hilux Pickup LN166R 2.8cc (3L) Diesel RHD (R - 06 reg, 8/1997-2006) Import
- Toyota Hilux Pickup LN167 3.0cc (5L) Diesel RHD (R - 05 reg, 8/1997-7/2001) Import
- Toyota Hilux Pickup LN172 3.0cc (5L) Diesel RHD (R - 05 reg, 8/1997-7/2004) Import
- Toyota Hilux Pickup KZN165 3.0cc (1KZTE) Turbo Diesel RHD (V - 54 reg, 9/1999-2005) Import
- Toyota Hilux Pickup KDN165R 2.5cc (2KDFTV) Turbo Diesel (D4D) RHD (51 - 55 reg, 8/2001-7/2005) UK Mk5
- Toyota Hilux Surf LN130 2.4cc (2LT) Turbo Diesel RHD/LHD (F - L reg, 1988-8/1993) Import
- Toyota Hilux Surf KZN130 3.0cc (1KZTE) Turbo Diesel RHD (L - N reg, 8/1993-11/1995) Import
- Toyota Hilux Surf VZN130 3.0cc (3VZE) V6 Petrol RHD (H - N reg, 8/1993-11/1995) UK/Import
- Toyota Hilux Surf 4Runner KZN130 3.0cc (1KZT) Turbo Diesel RHD (L - N reg, 8/1993-11/1995) UK
