FAG Rear Wheel Bearing Seal Kit

OEM-quality complete replacement rear wheel bearing kit for the Hilux Surf 185 series manufactured by FAG. It includes all necessary components usually required to change the rear wheel bearing on one side for models with or without ABS.
The extra collar added by RoughTrax to the FAG kit is a Genuine Toyota Collar if you have ABS.

FAG is one of the most respected manufacturers of bearings & kits Worldwide, any Garage fitting FAG will know (or should!) the brand and quality.
The RRP of this kit is £62.23 + vat (time of print & without extra collar) but due to the volumes, we purchase we have been able to reduce the cost considerably for whats probably the best quality kit on the market.

Please note, the Genuine Toyota ABS ring does not come with the kit but will need to be removed to fit a bearing kit, if required we do sell the ABS ring separately, R/T part number ABS005

Care must be taken when fitting the components and the use of the rear wheel bearing puller TOOL01 will certainly help ensure you don't damage major components when stripping out the old bearing, damage to components such as the shaft or seal fitting areas could cause early failure.
When a bearing or seal fails it is common to find the rear differential oil leaking into the rear brakes area, all listed components are included in the kit to make a quality repair.

Customers tips:

• When fitting, initially measure the depth of the retaining collar that runs on the inner axle seal (that stops the oil from the diff) the new collar must be positioned correctly on the shaft so that the seal runs central to the retaining collar. As a tip, measure from the end of the splined half shaft down to the centre of the collar and ensure the new collar fits into the same position to ensure a correct seal.
• Check your axle breather RAMS004 on top the axle casing, if blocked, either cleanout or replace as this could force oil through a weak spot.

This kit is one of the most comprehensive on the market and only contains quality components in an area prone to leaking.

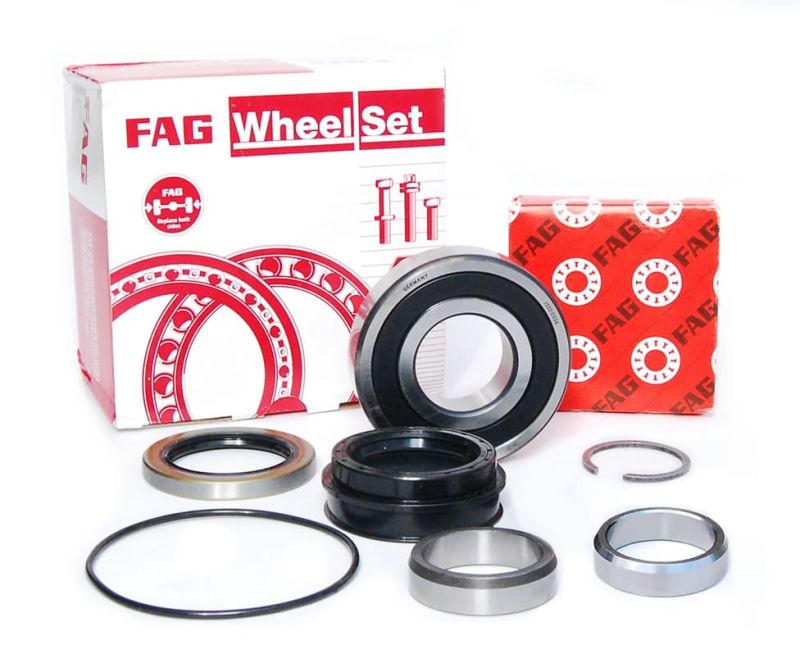

The FAG rear wheel bearing kit contains the following components to change one rear wheel bearing:
1x Inner axle seal,
1x Outer seal,
1x FAG manufactured rear wheel bearing,
2x Bearing retainer collars (For ABS models) - 1 Collar is added by RoughTrax and is Genuine Toyota
1x Retainer snap ring.
1x Rear hub "O" ring

About FAG:

FAG short for Fischers Aktien-Gesellschaft from Germany now part of the Schaeffler Group, have been a leading brand of wheel bearings for the automotive industry and even aerospace, in fact they started way back in 1883 and their trade-mark is protected in over 100 Countries showing commitment to their brand, they were also the first company to build the Automated Cast Steel Factory for the mass production of bearings.
INA, FAG and LuK make up the “Schaeffler Group” and in 2001 become the world’s second largest rolling bearing manufacturer.

In short, there is endless information found online about the quality of this manufacturer, as a supplier we recognize this quality and know you are fitting some of the best bearing kits available when fitting components from FAG.
Please note: FAG only produce a kit with one retaining collar in the kit, therefore RoughTrax add an additional collar to suit models with ABS that require 2 collars.

Click here to view Rear Axle Diagrams
