Steering Drag Link Relay Rod

A straight rod that connects the steering box pitman arm to knuckle arm See more detail

Choose your vehicle to ensure compatibility

Choose Vehicle

Rating:

97% of 100

14 Reviews Add Your Review

£47.40 £39.50

Add to Wishlist

Product Code:

STAR001

Order before 15:00 GMT weekdays for same day dispatch.

Order by 15:00 mon-fri for same day dispatch.

28 Day returns or exchange.

1 Year Parts Warranty

Details

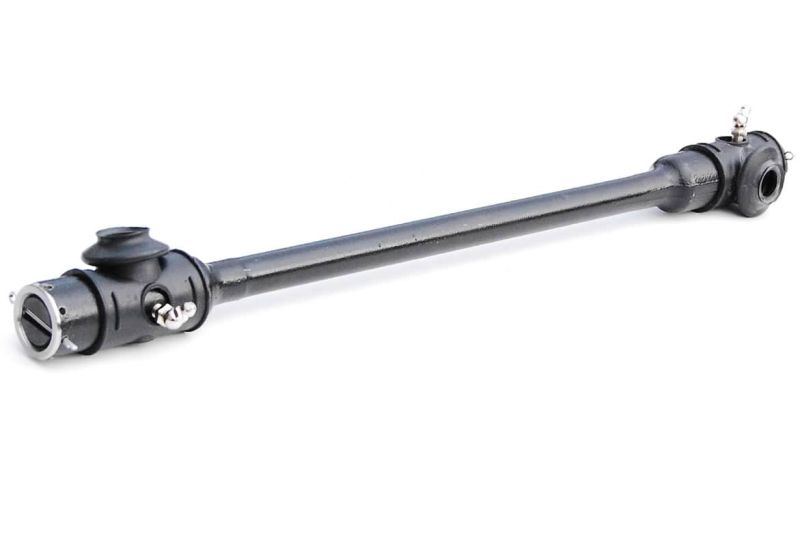

A Steering drag link relay arm Rod manufactured by Camelot for Hilux Pickup front leaf spring models from approx 1979-1997, Mk1, Mk2 and Mk3, Right-Hand drive only.

This arm is approximately 20" long and links the steering box pitman drop arm to the boomerang or otherwise known as steering knuckle arm.
Fitted to the Right-hand side (RHD models).
Contains all the springs and cups installed with adjustable slotted round end nuts, now also comes with the rubber protective boots at either end.
Comes with new split pins and grease nipples.

The pitman arm and steering knuckle may also be required as the ball joints that fit into the drag link on the ends of both the pitman arm and steering knuckle can often have play in which could cause the failure of the drag link.

Quality;
Camelot, part of the Trans Forward Enterprise Group, has been trading since the early 80's, they are an ISO9001:2008 approved Company, what's more they have also been awarded the TUV Rheinland Certification, a Global provider of safety and technical certification that works to validate the safety (amongst other areas) of a product, so you can be assured you are fitting a quality component.

Top Tip:
Check the ball studs on both pitman arm and knuckle arm (that the drag link attached to) are spherical else the seats that cup either side of the ball studs will meet together before cupping the ball studs resulting in a loose arm.

Ensure the arm is fitted the correct way round otherwise, it will hit the front chassis on full lock. The arm has adjuster nuts on either end, once fitted adjust both nuts tight then loosen 1-1/3 turns to set the correct pre-load on the internal springs then fit split pin.

SPECS / Fitments

More Information
Weight	1.680000
Manufacturer	Camelot
MPN (Manufacturer Part Number)	STAR001
OE Equivalent Part Number	45440-35070
Warranty Options	1 Year Parts Warranty
Date Codes	1979-1997
Fitting Position	Connects from the pitman arm to the knuckle arm
Unit of Sale	Individually

Compatible Vehicles

Vehicle Compatibility

Below are a list of compatible vehicle for this product.

SERVICE KITS for your Toyota

You have not selected a Toyota model to filter these products yet.

Choose your vehicle to ensure compatibility

Change Vehicle

Delivery and Returns

Delivery Information - Cut-off Time 15:00 Monday-Friday

> Click here for our Opening Hours and Delivery Times

Free Delivery - Orders Over £90 (Online Orders Only / 2-5 day service) subject to Terms & Conditions*

At checkout enter your delivery Postcode - the available options and charges will be provided depending on the product and location prior to any purchase.

*Excludes Islands and some Scottish postcodes where surcharges apply, click here for exclusions. Free delivery is not valid on any telephone order.

PLEASE NOTE: Orders placed before 15:00 weekdays will be dispatched on the same day subject to stock and points below. Orders placed after 15:00 on Friday or over the weekend will be dispatched on the following Monday.

If you wish to make any additions or alternations to your initial order you will need to let us know before 12.00 noon.

We are closed over Bank Holidays.

For full details please visit to our Deliveries page.

International Delivery – Cut-off 12 Noon Monday-Friday

RoughTrax offers fast, reliable, and affordable service as standard, we make sending your international order easy with an online tracking system sent straight to your email once despatched.

To confirm a delivery price simply add products to your basket, select your country and enter your postcode in the delivery field. The website will automatically calculate your delivery price. Goods can be sent worldwide.

All International orders are sent with FedEx, Parcelforce or DHL depending on the product/s & service you have selected.

For full details please visit our International Deliveries page.

Arrange Own Courier

If a delivery method is not available, an option of “Arrange My Own Courier” will display. This enables you to order through the website and arrange your own courier for your goods to be collected directly from RoughTrax in Bristol, UK.

For full details please visit to our Arrange My Own Courier page.

Returns

At RoughTrax we know that sometimes you will need to return items.

All products must be re-sellable and returned along with the original packaging and documents. (Stock to order or Special order items are non-returnable).
Goods must be returned within 28 days of purchase as per our Terms and Conditions
Products must be returned to RoughTrax at RoughTrax Ltd, Units 4-7 Pixash Business Centre, Pixash Lane, Keynsham, Bristol. BS31 1TP United Kingdom

If Returned parts that qualified for Free Delivery.

If you return a product(s) that qualified you for Free Delivery and the remainder of your order does not exceed the £90 Free Delivery Promotion, then RoughTrax reserve the right to charge carriage for the remaining products purchased to cover the carriage cost.

Please visit our Returns page to download a returns form and for further information.

Product Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Questions

Questions & Answers for Steering Drag Link Relay Rod

Can the draglink be fitted either way?
Yes, you can accidentally fit the wrong way around and in doing so the drag link will hit the chassis on full RH lock and restrict the steering. Always ensure you observe how the old one came off as either end of the drag link looks very similar at first glance.

Is there a torque for the adjuster nut either end?
Not a torque as such, however, Toyota state that once assembled tighten the round slotted nut either end as tight as you can then back off one turn, this sets the pre-load on the springs located inside the arm.

If I still have 'play' after fitting what could be the problem?
Potentially the fixed 'balls' at the end of either the steering pitman arm or the knuckle arms that the new draglink cups around could be worn. Quite often when an arm has been allowed to have excessive play and not kept adjusted, then these balls can have flats worn in them and at worst can even break free of the pitman or knuckle arm, if this is the case you must also replace the arms, never try welding the balls back to arms as serious failure could occur.
