Genuine Toyota Rear Inner Axle Oil Seal - 90310-58003
Choose your vehicle to ensure compatibility | Choose Vehicle |
Add to Wishlist
![Order before 15:00 GMT weekdays for same day dispatch.](/pub/static/frontend/plan2pixel/roughtrax-desktop/en_GB/images/product-trust-trax.jpg)
Order by 15:00 mon-fri for same day dispatch.
![28 Day returns or exchange.](/pub/static/frontend/plan2pixel/roughtrax-desktop/en_GB/images/product-trust-trax.jpg)
28 Day returns or exchange.
![1 Year Parts Warranty](/pub/static/frontend/plan2pixel/roughtrax-desktop/en_GB/images/product-trust-trax.jpg)
1 Year Parts Warranty

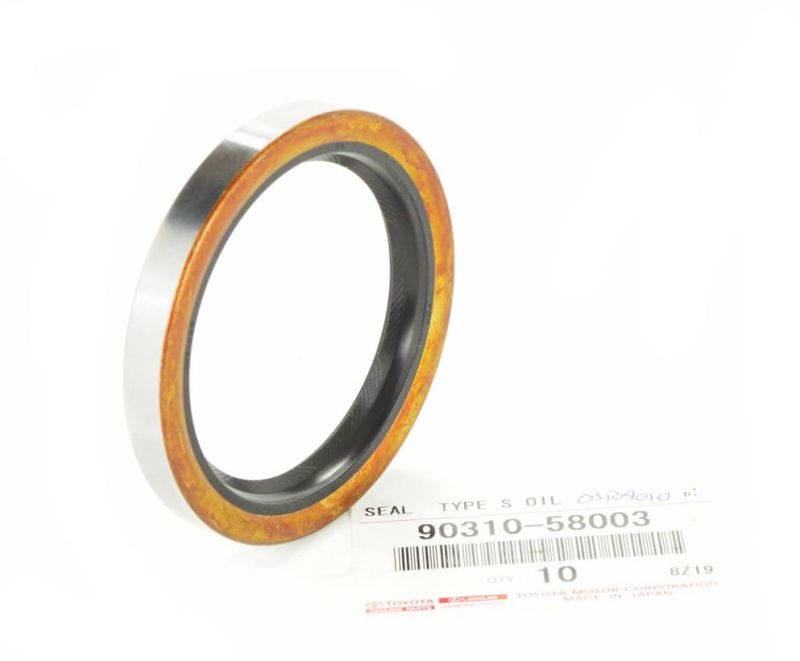

The original Genuine Toyota Rear Inner axle half shaft oil seal that fits into the axle casing behind the hub manufactured by NOK for Toyota, fits the Land Cruisers 120 and 150 series as listed.
The inner axle seal seals on the bearing retainer collar stopping oil leaking into the rear hub.
Always ensure the running face of the collar that the seal seats on is in good order or it could damage the new oil seal.
The tough rigid metal cased nitrile butadiene rubber (NBR) provides the best possible seal to the axle housing. Nitrile butadiene rubber seals have an outstanding resistance to oils, fuels, heat & abrasion.
Genuine Toyota original fitment seal, guaranteed quality and fit.
Seal fitting Tips:
- Extreme care must be taken when removing and fitting any oil seal but especially this one. Never remove by driving a screwdriver between the seal and the casing it fits into, oil could pass by any marks on the casing.
- Always clean the area the seal will fit into, brake & clutch parts cleaner is excellent for this. Make sure the seal fits squarely into the casing and never damage a seal on assembly, a deformed seal will leak.
- The oil seal will have a spring on the lip side of the seal, always fit a seal with the spring against the flow of oil it’s holding back and make sure it doesn't come off when tapping in a new oil seal.
- Always smear any oil seal with a light film of the oil it's holding back, this will prevent the seal from getting hot on initial use and causing early failure.
- And finally check your axle breather on top the casing, if blocked this can cause oil to be forced pass an oil seal.
Making sure a few fundamental precautions are carried out when fitting this seal will certainly prolong the life and prevent the seal from leaking again.
Weight | 0.025000 |
---|---|
Dimensions | 58mm x 75mm x 9mm |
Manufacturer | Toyota |
MPN (Manufacturer Part Number) | 90310-58003 |
OE Equivalent Part Number | 90310-58003 |
Warranty Options | 1 Year Parts Warranty |
Fitting Position | Rear |
Unit of Sale | Individually |
Specs & Fitment | Inner Diameter: 57 mm Outer Diameter: 75 mm Thickness/Strength: 9 mm |
Vehicle Compatibility
Below are a list of compatible vehicle for this product.
- Toyota Land Cruiser KDJ120R (LWB) 3.0cc (1KDFTV) Turbo Diesel (D4D) RHD (52 - 09 reg, 9/2002-12/2009) Prado
- Toyota Land Cruiser KDJ125R (SWB) 3.0cc (1KDFTV) Turbo Diesel (D4D) RHD (52 - 09 reg, 9/2002-12/2009) Prado
- Toyota Land Cruiser KDJ150R (LWB) 3.0cc (1KDFTV) Turbo Diesel (D4D) RHD (09 - 64 reg, 8/2009 onwards) UK
- Toyota Land Cruiser KDJ155R (SWB) 3.0cc (1KDFTV) Turbo Diesel (D4D) RHD (09 - 64 reg, 8/2009 onwards) UK
- Toyota Land Cruiser GRJ120R (LWB) 4.0cc (1GRFE) Petrol (52 - 09 reg, 1/2003-12/2009) Prado
