Pedders NON-AHC 45mm Suspension Conversion Lift Kit
This UZJ100 kit will lift approximately 45mm above the standard ride height. See more detail
Choose your vehicle to ensure compatibility | Choose Vehicle |
£786.00 £655.00
Add to Wishlist
Product Code:
LK024
Order by 15:00 mon-fri for same day dispatch.
28 Day returns or exchange.
1 Year Parts Warranty
Pedders NON-AHC 45mm lift suspension conversion kit for the UZJ100 Petrol V8 Land Cruiser converts your original Active Height Control (AHC) suspension system into standard non-adjustable suspension. For models with the 1160mm long torsion bars.
This kit comprises of everything you will need to replace the AHC suspension which comprises only of high-quality Australian components from Pedders.
The shock absorbers, front & rear are the Pedders TrakRyder Twin Tube Gas range.
The rear coil springs 7745 offer the lift with a slightly firmer ride and a spring rate of 204 lb/in.
Please note:
For more loaded / Towing vehicles or customers that need a Heavy Duty option then use the 7845 Rear coil option by selecting the tick box near the "Add to Cart" button.
Your front end uses handed heavy-duty torsion bars and control arm strengthening brackets which are also made in Australia by Pedders, you adjust your own ride height on the front.
Dashboard Lights - After installation you will need to tell the ECU that the vehicle no longer has active Height Control etc - in our Download Tab we have added Pedders instructions on how to remove dashboard warning lights.
For the full spec of each product within this conversion kit please see the individual products below. This lift kit will only fit models with the 1160mm long torsion bars.
- As with all suspension shocks/coils supplied, paint is not covered under warranty due to the very nature and position of the component.
- Always ensure your front wheel alignment and geometry is checked after installation.

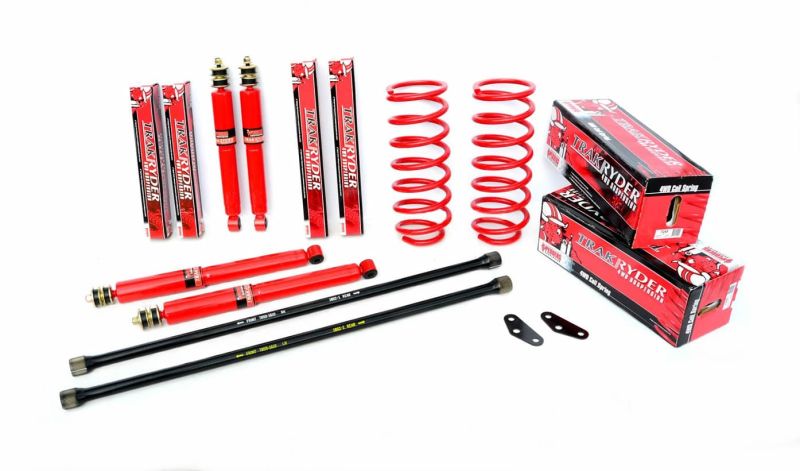

Kit Contains:
- Pedders Trak-Ryder Gas Front Shocks x2
- Pedders Trak-Ryder Gas Rear Shocks x2
- Pedders 45mm Lift 7745 Rear Coil Springs x1 (Pair) - 204 lb/In - 18mm wire.
- Pedders Australian HD Torsion Bars x1 (Pair) - 1160mm overall length - 4722
- Pedders Control Arm Strengthening Brackets x1 (Pair)
Replacing the complete AHC suspension system on your UZJ100 Series Land Cruiser can cost literally run into thousands of pounds. The main cause of AHC systems failing are the springs sagging which causes additional weight/pressure on the shock absorbers, therefore, added pressure on the hydraulic pump, sensors & spheres triggering warning lights on the dash.
This kit is not compatible with the HDJ100 & HDJ101 which have the longer torsion bars.
| Weight | 80.000000 |
|---|---|
| Manufacturer | RoughTrax |
| MPN (Manufacturer Part Number) | LK024 |
| Vehicle | Toyota Land Cruiser UZJ100R 4.7cc (2UZFE) V8 Petrol RHD (R - 07 reg, 1/1998-8/2007) Amazon |
| Warranty Options | 1 Year Parts Warranty |
| Fitting Position | Suspension, front & rear. |
| Unit of Sale | 1 Kit |
| Specs & Fitment | Lift Height: Will lift the vehicle approximately 45mm above the standard ride height.
|
Vehicle Compatibility
Below are a list of compatible vehicle for this product.
SERVICE KITS for your Toyota
You have not selected a Toyota model to filter these products yet.
Choose your vehicle to ensure compatibility
Change VehicleDelivery Information - Cut-off Time 15:00 Monday-Friday
> Click here for our Opening Hours and Delivery Times
Free Delivery - Orders Over £90 (Online Orders Only / 2-5 day service) subject to Terms & Conditions*
At checkout enter your delivery Postcode - the available options and charges will be provided depending on the product and location prior to any purchase.
*Excludes Islands and some Scottish postcodes where surcharges apply, click here for exclusions. Free delivery is not valid on any telephone order.
PLEASE NOTE: Orders placed before 15:00 weekdays will be dispatched on the same day subject to stock and points below. Orders placed after 15:00 on Friday or over the weekend will be dispatched on the following Monday.
If you wish to make any additions or alternations to your initial order you will need to let us know before 12.00 noon.
We are closed over Bank Holidays.
For full details please visit to our Deliveries page.
International Delivery – Cut-off 12 Noon Monday-Friday
RoughTrax offers fast, reliable, and affordable service as standard, we make sending your international order easy with an online tracking system sent straight to your email once despatched.
To confirm a delivery price simply add products to your basket, select your country and enter your postcode in the delivery field. The website will automatically calculate your delivery price. Goods can be sent worldwide.
All International orders are sent with FedEx, Parcelforce or DHL depending on the product/s & service you have selected.
For full details please visit our International Deliveries page.
Arrange Own Courier
If a delivery method is not available, an option of “Arrange My Own Courier” will display. This enables you to order through the website and arrange your own courier for your goods to be collected directly from RoughTrax in Bristol, UK.
For full details please visit to our Arrange My Own Courier page.
Returns
At RoughTrax we know that sometimes you will need to return items.
- All products must be re-sellable and returned along with the original packaging and documents. (Stock to order or Special order items are non-returnable).
- Goods must be returned within 28 days of purchase as per our Terms and Conditions
- Products must be returned to RoughTrax at RoughTrax Ltd, Units 4-7 Pixash Business Centre, Pixash Lane, Keynsham, Bristol. BS31 1TP United Kingdom
If Returned parts that qualified for Free Delivery.
If you return a product(s) that qualified you for Free Delivery and the remainder of your order does not exceed the £90 Free Delivery Promotion, then RoughTrax reserve the right to charge carriage for the remaining products purchased to cover the carriage cost.
Please visit our Returns page to download a returns form and for further information.
Write Your Own Review
Questions & Answers for Pedders NON-AHC 45mm Suspension Conversion Lift Kit
Do I need to remove all the original plumbing etc?
In general customers feedback that have used this kit or indeed similar kit's have tended to leave the original plumbing in place. Of course this is entirely down to the customer or the mechanic carrying out the work.
This kit simply takes it back to a suspension that some UZJ100 models had when AHC wasn't fitted.
Any problems fitting?
Again, as we don't fit we are going on a general feedback from customers. In short this is basic suspension work, 4 shocks, 2 coils and a pair of torsion bars to fit, the issues come with the age of a vehicle or location, in other words, corrosion!
Apparently the rear shock absorber top mounts can be a pain as they fit very close to the bodywork, maybe worth looking at these, we'd also suggest liberal use of WD40 prior especially on the Torsion bar adjust bolts !!
What are the brackets for?
When fitting high-grade uprated torsion bars more stress is put into the mounting points, these support brackets simply bolt on to increase the chassis thickness and prevent stress points.
What about dashboard warning lights?
There is a chance that a dash warning light may come on as of course you are changing the suspension, you will need your mechanic to address this.
Is this a reliable suspension going forward?
Very much so, converting back to basic Gas shock absorbers with uprated coils and Torsion bars is widely used especially in Countries such as Australia and Africa.
And should any part fail out of warranty we can replace any individual component or like for like.
Fitting Instructions: How to turn off the dash lights after removing AHC.
