Pedders NON-AHC Standard Suspension Conversion Kit - HDJ100 & HDJ101
Pedders kit that will bring your Land Cruiser back to an approx. standard ride height See more detail
Choose your vehicle to ensure compatibility | Choose Vehicle |
£798.00 £665.00
Add to Wishlist
Product Code:
LK013
Order by 15:00 mon-fri for same day dispatch.
28 Day returns or exchange.
1 Year Parts Warranty
NON-AHC standard suspension conversion kit for independent front suspension (IFS) HDJ100 & HDJ101 Series Diesel Land Cruisers, features Australian suspension components from Pedders.
This kit is designed to convert your original Active Height Control (AHC) suspension system into standard non-adjustable suspension setup with the ride height near to standard or as listed.
If you don't have active height control fitted then this kit will simply replace your existing standard shocks, coils, and Torsion bars.
This kit comprises of everything you will need to replace the AHC suspension which comprises of quality components. The shock absorbers are manufactured by Pedders as are the coil springs Spring Rate: 204 Lbs/in and the heavy-duty torsion bars (1212mm long) and control arm strengthening brackets.
For the full spec of each product within this conversion kit please see the individual products below - Kit only fits models with the 1212mm long Torsion bars (usually fittd to HDJ100 / 101)
- As with all suspension shocks/coils supplied, paint is not covered under warranty due to the very nature and position of the component.
- Always ensure your front wheel alignment and geometry is checked after installation.

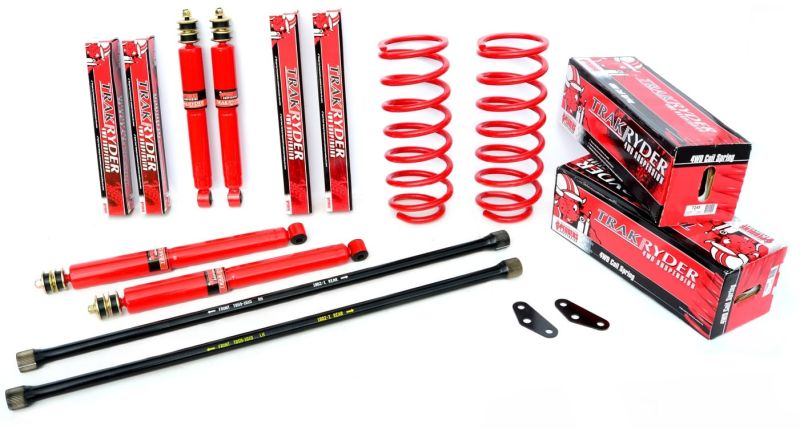

Kit Contains:
- Pedders Trak-Ryder Gas Front Shocks x2
- Pedders Trak-Ryder Gas Rear Shocks x2
- Pedders Uprated Rear Coil Springs x1 (Pair) - Spring Rate: 204 Lbs/in
- Pedders Australian HD Torsion Bars x1 (Pair) - 1212mm overall length - 4723
- Pedders Control Arm Strengthening Brackets x1 (Pair)
Replacing the complete AHC suspension system on your 100 Series Land Cruiser can run into thousands of pounds; this demonstrates how unaffordable it is to replace a single part of your AHC suspension system let alone the complete system. The main cause of AHC systems failing are the springs sagging which causes additional weight/pressure on the shock absorbers, therefore added pressure on the hydraulic pump, sensors & spheres triggering warning lights on the dash.
Disabling Dashlight instructions:
In our "Download" tab are Pedders complete detailed instructions to disable the dashlights (should they come on) to ensure that no warning lights are displayed after fitment which is essential for MOT’s.
Ride Heights:
The ride height can vary pending original vehicles bushes etc, below will provide you with a good idea of the ride height after installing the lift kit, from this you can compare against your existing ride height. It is not designed as a lift kit.
Ride heights are taken from the bottom of the wheel rim vertically up to the wheel arch: -
Ride heights are provided from a standard HDJ100 Land Cruiser that was fitted with AHC, now replaced with this kit.
Wheel diameters will affect this ride height so we have provided dimensions with 2 common wheel sizes -
you can adjust dimensions by 12.5mm (1/2") accordingly if running different size wheels.
Rear ride height: - bottom of rim up to arch: - usually a 10mm discrepancy (Provided by customers)
16" rims = 775 mm
17" rims = 787 mm
18" rims = 800 mm
Front ride height: -
As this is Torsion bar suspension the mechanic fitting can adjust the ride height to suit the rear.
This kit is NOT compatible with the UZJ100 Petrol 4.5 V8 which has shorter torsion bars.
| Weight | 80.000000 |
|---|---|
| Manufacturer | Pedders |
| MPN (Manufacturer Part Number) | LK013 |
| Warranty Options | 1 Year Parts Warranty |
| Fitting Position | Suspension, front & rear. |
| Unit of Sale | 1 Kit |
| Specs & Fitment | Rear ride height - Taken from the bottom of the wheel rim (where the tyre meets) vertically up to wheel arch: Dimension with: Rear Spring Rate: 204 Lbs/in Front Ride Height: You set your own ride height as this is a Torsion bar front suspension. |
Vehicle Compatibility
Below are a list of compatible vehicle for this product.
SERVICE KITS for your Toyota
You have not selected a Toyota model to filter these products yet.
Choose your vehicle to ensure compatibility
Change VehicleDelivery Information - Cut-off Time 15:00 Monday-Friday
> Click here for our Opening Hours and Delivery Times
Free Delivery - Orders Over £90 (Online Orders Only / 2-5 day service) subject to Terms & Conditions*
At checkout enter your delivery Postcode - the available options and charges will be provided depending on the product and location prior to any purchase.
*Excludes Islands and some Scottish postcodes where surcharges apply, click here for exclusions. Free delivery is not valid on any telephone order.
PLEASE NOTE: Orders placed before 15:00 weekdays will be dispatched on the same day subject to stock and points below. Orders placed after 15:00 on Friday or over the weekend will be dispatched on the following Monday.
If you wish to make any additions or alternations to your initial order you will need to let us know before 12.00 noon.
We are closed over Bank Holidays.
For full details please visit to our Deliveries page.
International Delivery – Cut-off 12 Noon Monday-Friday
RoughTrax offers fast, reliable, and affordable service as standard, we make sending your international order easy with an online tracking system sent straight to your email once despatched.
To confirm a delivery price simply add products to your basket, select your country and enter your postcode in the delivery field. The website will automatically calculate your delivery price. Goods can be sent worldwide.
All International orders are sent with FedEx, Parcelforce or DHL depending on the product/s & service you have selected.
For full details please visit our International Deliveries page.
Arrange Own Courier
If a delivery method is not available, an option of “Arrange My Own Courier” will display. This enables you to order through the website and arrange your own courier for your goods to be collected directly from RoughTrax in Bristol, UK.
For full details please visit to our Arrange My Own Courier page.
Returns
At RoughTrax we know that sometimes you will need to return items.
- All products must be re-sellable and returned along with the original packaging and documents. (Stock to order or Special order items are non-returnable).
- Goods must be returned within 28 days of purchase as per our Terms and Conditions
- Products must be returned to RoughTrax at RoughTrax Ltd, Units 4-7 Pixash Business Centre, Pixash Lane, Keynsham, Bristol. BS31 1TP United Kingdom
If Returned parts that qualified for Free Delivery.
If you return a product(s) that qualified you for Free Delivery and the remainder of your order does not exceed the £90 Free Delivery Promotion, then RoughTrax reserve the right to charge carriage for the remaining products purchased to cover the carriage cost.
Please visit our Returns page to download a returns form and for further information.
Write Your Own Review
Questions & Answers for Pedders NON-AHC Standard Suspension Conversion Kit - HDJ100 & HDJ101
Do I need to remove all the original plumbing etc?
In general customers feedback, who have used this kit or indeed similar kit's, have tended to leave the original plumbing in place. Of course this is entirely down to the customer or the mechanic carrying out the work.
This kit simply takes it back to a suspension that some HDJ100 models had when AHC wasn't fitted.
Any problems fitting?
Again, as we don't fit we are going on a general feedback from customers. In short this is basic suspension work, 4 shocks, 2 coils and a pair of torsion bars to fit, the issues come with the age of a vehicle or location, in other words, corrosion!
Apparently the rear shock absorber top mounts can be a pain as they fit very close to the bodywork, maybe worth looking at these, we'd also suggest liberal use of WD40 prior especially on the Torsion bar adjust bolts !!
What are the brackets for?
When fitting high-grade uprated torsion bars more stress is put into the mounting points, these support brackets simply bolt on to increase the chassis thickness and prevent stress points.
What about dashboard warning lights?
There is a chance that a dash warning light may come on as of course you are changing the suspension, you will need your mechanic to address this.
Is this a reliable suspension going forward?
Very much so, converting back to basic Gas shock absorbers with uprated coils and Torsion bars is widely used especially in Countries such as Australia and Africa.
And should any part fail out of warranty we can replace any individual component or like for like.
What's it like for Towing?
The Pedders rear coils are an uprated thicker coil as only these are now taking the vehicle weight whereas the original AHC setup used both the damper and coil to adjust the ride. Again several customers using this setup have towed caravans and alike, feedback has been that the rear coils and shocks have proved an excellent overall ride and have been very pleased.......especially with the price !!
Fitting Instructions: How to turn off the dash lights after removing AHC.
