AMC Diesel Fuel Filter from August 1985 on
AMC Quality and performance you can trust See more detail
Choose your vehicle to ensure compatibility | Choose Vehicle |
£8.40 £7.00
Add to Wishlist
Product Code:
FUEF05
Order by 15:00 mon-fri for same day dispatch.
28 Day returns or exchange.
1 Year Parts Warranty

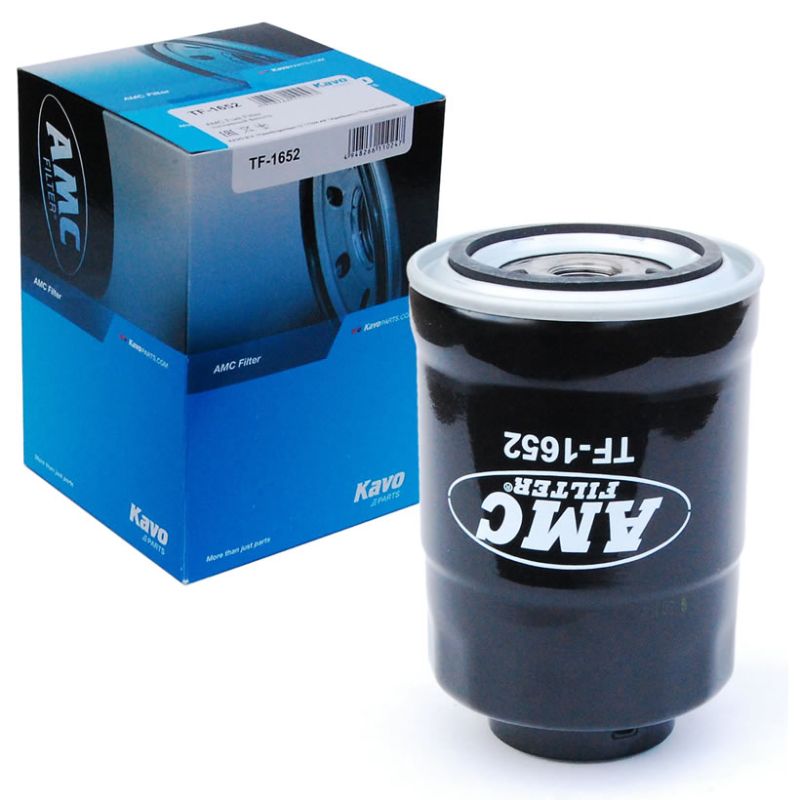

A Diesel fuel filter from AMC for listed Toyota Hilux pickups, Surfs and Land Cruisers, 1985 - Onwards. Quality you can trust in from AMC filters, a brand all technicians will know of.
Nb: Hilux LN65 Mk2 - Does not fit early Mk2 from 08/1993 - 08/1985 that used a fuel filter without water level sensor.
AMC filters are multi-stage filter comprising of both coarse and fine filtration ensuring protection for injectors and pump whilst allowing the recommended fuel flow set by OE manufacturers.
Water droplets are separated through the filter medium and decant to the bottom of the filter whereby they can be drained off through the lower tap which is part of the sensor screwed separately into the new filter.
A replacement fuel filter that screws onto the fuel filter primer head and your original screw-on sensor fits to the bottom.
The filter comes with a new "O" ring for the sensor aswell as the top seal.
| Weight | 0.465000 |
|---|---|
| Dimensions | 3/4 -16UNF, M36x1.5, H: 140mm x Ø 95mm |
| Manufacturer | AMC Filters |
| MPN (Manufacturer Part Number) | TF-1652 |
| OE Equivalent Part Number | 23303-64010, 23390-64480 |
| Warranty Options | 1 Year Parts Warranty |
| Date Codes | Fits from 08/1985 -> |
| Fitting Position | Bulk head |
| Unit of Sale | Individually |
| Specs & Fitment | Quality Information: AMC Filter Quality Standards & Information |
Vehicle Compatibility
Below are a list of compatible vehicle for this product.
- Toyota Hilux Pickup LN65R 2.4cc (2L) Diesel RHD (A - F reg, 8/1983-7/1988) UK Mk2
- Toyota Hilux Pickup LN105R 2.4cc (2L) Diesel RHD (F - R reg, 8/1988-7/1997) UK Mk3
- Toyota Hilux Pickup LN106 2.8cc (3L) Diesel RHD (F - R reg, 8/1988-8/1997) Import
- Toyota Hilux Pickup LN107 2.8cc (3L) Diesel RHD (J - R reg, 8/1991-8/1997) Import
- Toyota Hilux Pickup LN109 2.8cc (3L) Diesel RHD (F - R reg, 8/1994-8/1997) Import
- Toyota Hilux Pickup LN110L 2.4cc (2L) Diesel LHD (F - R reg, 1988-1997) Import Mk3
- Toyota Hilux Pickup LN166R 2.8cc (3L) Diesel RHD (R - 06 reg, 8/1997-2006) Import
- Toyota Hilux Pickup LN167 3.0cc (5L) Diesel RHD (R - 05 reg, 8/1997-7/2001) Import
- Toyota Hilux Pickup LN172 3.0cc (5L) Diesel RHD (R - 05 reg, 8/1997-7/2004) Import
- Toyota Hilux Pickup KZN165 3.0cc (1KZTE) Turbo Diesel RHD (V - 54 reg, 9/1999-2005) Import
- Toyota Hilux Pickup KDN165R 2.5cc (2KDFTV) Turbo Diesel (D4D) RHD (51 - 55 reg, 8/2001-7/2005) UK Mk5
- Toyota Hilux Surf LN130 2.4cc (2LT) Turbo Diesel RHD/LHD (F - L reg, 1988-8/1993) Import
- Toyota Hilux Surf KZN130 3.0cc (1KZTE) Turbo Diesel RHD (L - N reg, 8/1993-11/1995) Import
- Toyota Hilux Surf KZN185 3.0cc (1KZTE) Turbo Diesel RHD (N - W reg, 11/1995-8/2000) Import
- Toyota Hilux Surf 4Runner KZN130 3.0cc (1KZT) Turbo Diesel RHD (L - N reg, 8/1993-11/1995) UK
- Toyota Land Cruiser LJ70R 2.4cc (2LT) Turbo Diesel RHD (D - G reg, 1986-1/1990) UK
- Toyota Land Cruiser LJ70R 2.4cc (2LT) Turbo Diesel RHD (G - K reg, 1/1990-5/1993) UK
- Toyota Land Cruiser LJ71 2.4cc (2LT) Turbo Diesel RHD (C - G reg, 1986-1/1990) Import
- Toyota Land Cruiser LJ71 2.4cc (2LTE) Turbo Diesel RHD (G - K reg, 1/1990-5/1993) Import
- Toyota Land Cruiser LJ78 2.4cc (2LTE) Turbo Diesel RHD (G - K reg, 4/1990-5/1993) Import
- Toyota Land Cruiser KZJ70R 3.0cc (1KZT) Turbo Diesel RHD (K - N reg, 5/1993-4/1996) UK
- Toyota Land Cruiser HDJ80R 4.2cc (1HDT) Diesel (12 Valve) RHD (G - L reg, 1/1990-7/1994) UK
- Toyota Land Cruiser HDJ80R 4.2cc (1HDFT) Diesel (24 Valve) RHD (M - S reg, 1/1995-1/1998) UK
- Toyota Land Cruiser HDJ81 4.2cc (1HDT) Diesel (12 Valve) RHD (G - M reg, 1/1990-1/1995) Import
- Toyota Land Cruiser HDJ81 4.2cc (1HDFT) Diesel (24 Valve) RHD (M - S reg, 1/1995-1/1998) Import
- Toyota Land Cruiser KZJ90R (SWB) 3.0cc (1KZTE) Turbo Diesel RHD (N - W reg, 4/1996-7/2000)
- Toyota Land Cruiser KZJ95R (LWB) 3.0cc (1KZTE) Turbo Diesel RHD (N - 52 reg, 4/1996-7/2000) Import
- Toyota Land Cruiser KDJ90R (SWB) 3.0cc (1KDFTV) Turbo Diesel (D4D) RHD (W - 52 reg, 8/2000-9/2002)
- Toyota Land Cruiser KDJ95R (LWB) 3.0cc (1KDFTV) Turbo Diesel (D4D) RHD (W - 52 reg, 8/2000-9/2002)
- Toyota Land Cruiser HDJ100R 4.2cc (1HDFTE) Turbo Diesel RHD (R - 07 reg, 1/1998-8/2007) UK Amazon
- Toyota Land Cruiser HDJ101 4.2cc (1HDFTE) Turbo Diesel RHD (R - 07 reg, 1/1998-8/2007) Amazon
- Toyota Land Cruiser KDJ120R (LWB) 3.0cc (1KDFTV) Turbo Diesel (D4D) RHD (52 - 09 reg, 9/2002-12/2009) Prado
- Toyota Land Cruiser KDJ125R (SWB) 3.0cc (1KDFTV) Turbo Diesel (D4D) RHD (52 - 09 reg, 9/2002-12/2009) Prado
