In Stock
Only 8 left

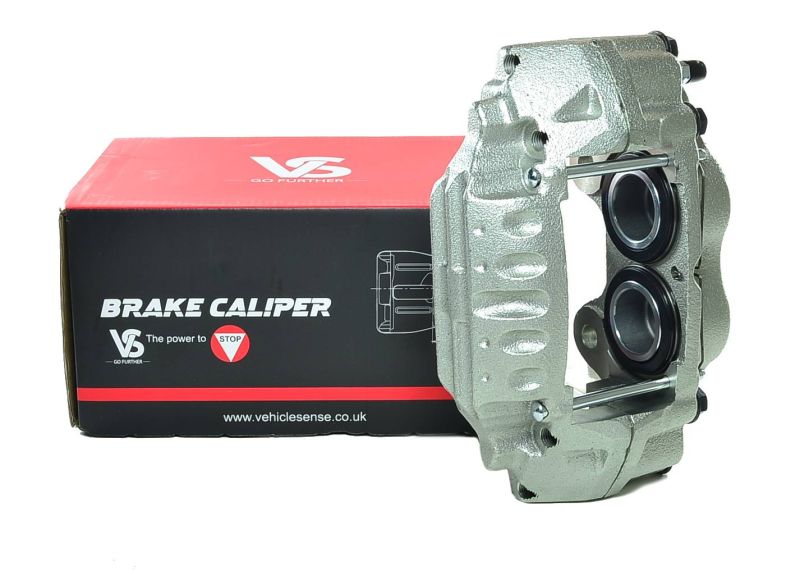

Front Brake Caliper L/H
Quality brand - certified TS16949, complete with pins & clips. See more detail
Choose your vehicle to ensure compatibility | Choose Vehicle |
£96.00 £80.00
Add to Wishlist
Product Code:
BCA003
Order by 15:00 mon-fri for same day dispatch.
28 Day returns or exchange.
1 Year Parts Warranty
A new Left Hand, passenger side front Brake Caliper for the Hilux Pickup and Land Cruiser models as listed complete with pad pins, fits models with the front vented brake disc.
Land Cruiser 70 series owners please note:
These calipers only fit models with Vented front discs - these models would also have rear disc brakes fitted and not drums
About the Caliper:
- This is a fixed “4 pot” (4 piston) brake caliper. As the name suggests it is fixed to the hub via two bolts so that the pistons are arranged on opposite sides of the brake disc providing maximum performance. All 4 pistons are the same size.
- Each side of the caliper has 2 pistons acting on each brake pad which provides increased braking efficiency.
- Pads are held in by 2 brake pad pins and a retaining clip that come with the caliper. Applying a smear of “Copper Slip” grease to the pins and back of the brake pads will help with brake squeal or the pad sticking when the caliper is in operation.
- A common brake caliper fault is that one or more pistons start to seize and stick (usually down to a split dust seal), this in turn can create brake pull under braking or excessive heat build-up between pads and discs whereby the pad is held against the disc. When the pedal is released the caliper pistons should retract smoothly clearing the pad from the disc.
- A sticking piston can be the cause of a warped or badly worn disc and pad, it’s also usually the cause of imbalanced front braking.
Fits Models:
Hilux Pickups: MK3, Mk4, Mk5 & LN106, LN107.
Land Cruiser: Late 70 series and KZJ70 with Vented front discs
SAJones Co. Ltd:
With over 30 years in the business, SAJones from Taiwan has been manufacturing brake calipers, masters, and clutch hydraulics for the automotive industry. Their strong R&D team develop and follow the reverse engineering procedure ensuring each and every caliper is to the exacting specifications of the original.
They are a proudly Certified TS16949 Company showing commitment to quality, essential in the manufacture of such components. They exhibit their brand and products throughout the world and are widely recognised in the industry.
RoughTrax has been supplying their product for well over 10 years now and find their product to be equal to many leading brands but without the price tag!
| Weight | 6.200000 |
|---|---|
| Manufacturer | SA Jones |
| MPN (Manufacturer Part Number) | 47750-35080 |
| OE Equivalent Part Number | 47750-35080, 47750-35140 |
| Warranty Options | 1 Year Parts Warranty |
| Fitting Position | Front Left Hand / Nearside / Passenger |
| Unit of Sale | Individually |
Vehicle Compatibility
Below are a list of compatible vehicle for this product.
- Toyota Hilux Pickup LN105R 2.4cc (2L) Diesel RHD (F - R reg, 8/1988-7/1997) UK Mk3
- Toyota Hilux Pickup YN106R 2.2cc (4Y) Petrol RHD (F - R reg, 8/1988-8/1997) UK Mk3
- Toyota Hilux Pickup LN106 2.8cc (3L) Diesel RHD (F - R reg, 8/1988-8/1997) Import
- Toyota Hilux Pickup LN107 2.8cc (3L) Diesel RHD (J - R reg, 8/1991-8/1997) Import
- Toyota Hilux Pickup LN109 2.8cc (3L) Diesel RHD (F - R reg, 8/1994-8/1997) Import
- Toyota Hilux Pickup LN110L 2.4cc (2L) Diesel LHD (F - R reg, 1988-1997) Import Mk3
- Toyota Hilux Pickup LN165R 2.4cc (2LT) Turbo Diesel RHD (R - Y reg, 8/1997-7/2001) UK Mk4
- Toyota Hilux Pickup LN166R 2.8cc (3L) Diesel RHD (R - 06 reg, 8/1997-2006) Import
- Toyota Hilux Pickup LN167 3.0cc (5L) Diesel RHD (R - 05 reg, 8/1997-7/2001) Import
- Toyota Hilux Pickup LN172 3.0cc (5L) Diesel RHD (R - 05 reg, 8/1997-7/2004) Import
- Toyota Hilux Pickup KZN165 3.0cc (1KZTE) Turbo Diesel RHD (V - 54 reg, 9/1999-2005) Import
- Toyota Hilux Pickup KDN165R 2.5cc (2KDFTV) Turbo Diesel (D4D) RHD (51 - 55 reg, 8/2001-7/2005) UK Mk5
- Toyota Land Cruiser LJ70R 2.4cc (2LT) Turbo Diesel RHD (G - K reg, 1/1990-5/1993) UK
- Toyota Land Cruiser LJ71 2.4cc (2LTE) Turbo Diesel RHD (G - K reg, 1/1990-5/1993) Import
- Toyota Land Cruiser LJ78 2.4cc (2LTE) Turbo Diesel RHD (G - K reg, 4/1990-5/1993) Import
- Toyota Land Cruiser KZJ70R 3.0cc (1KZT) Turbo Diesel RHD (K - N reg, 5/1993-4/1996) UK
